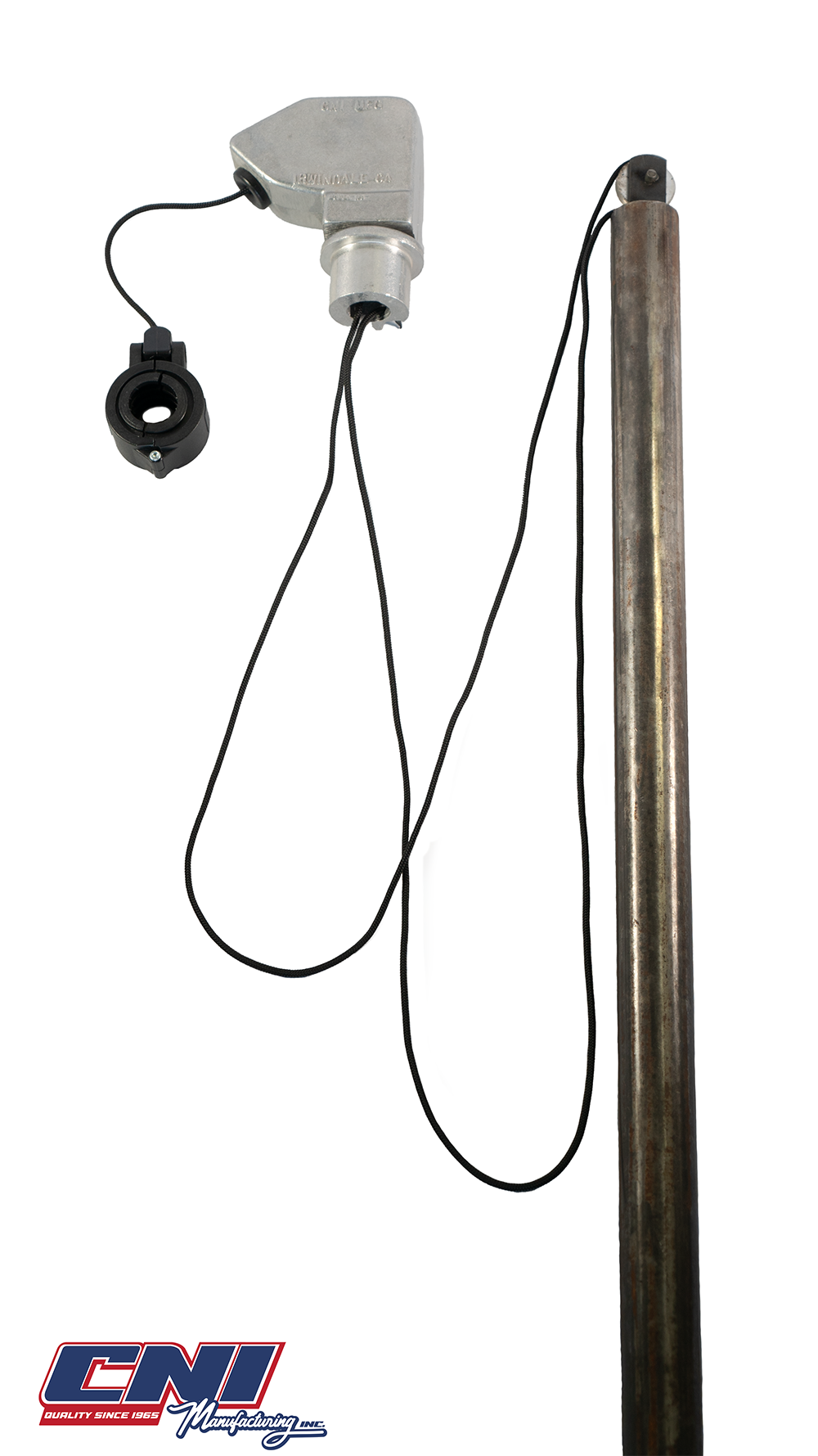

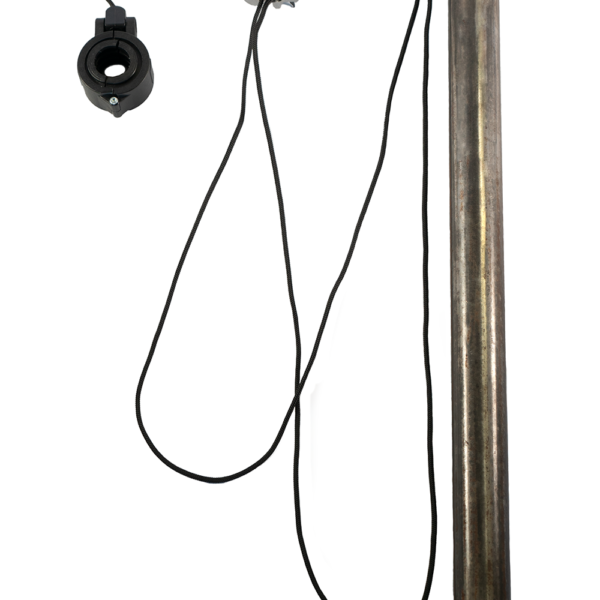

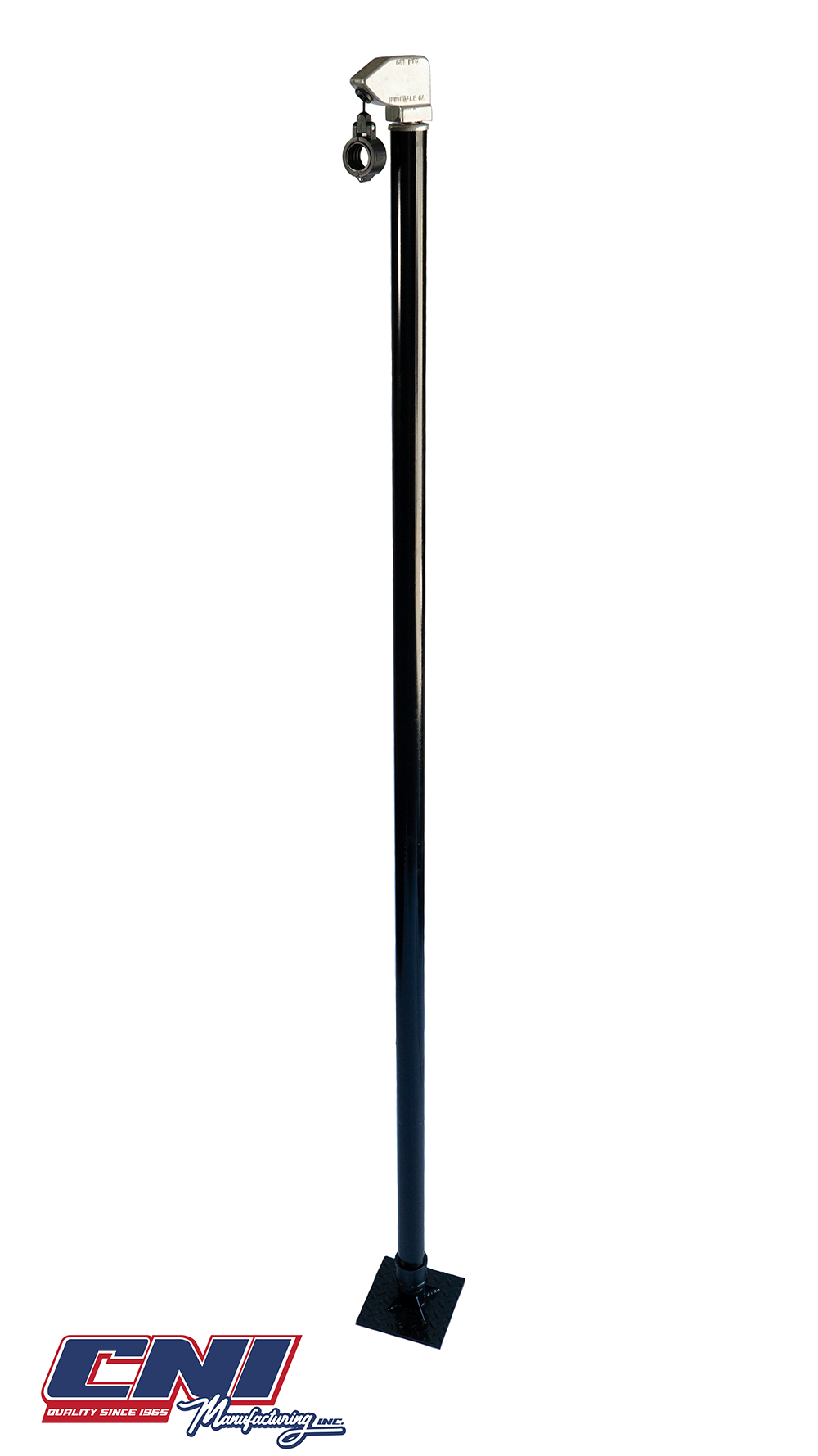

Commercial Counterweight Retractor
The Commercial Counterweight Retractor is a heavy-duty hose management solution designed for high clearance vehicle fueling such as semi-trucks.

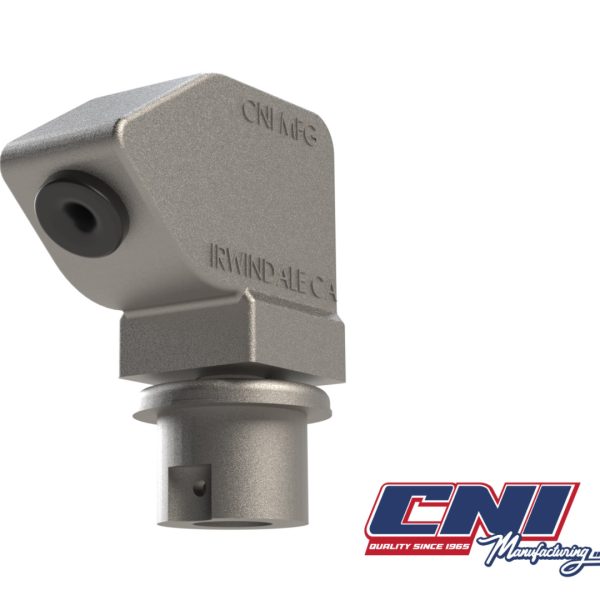

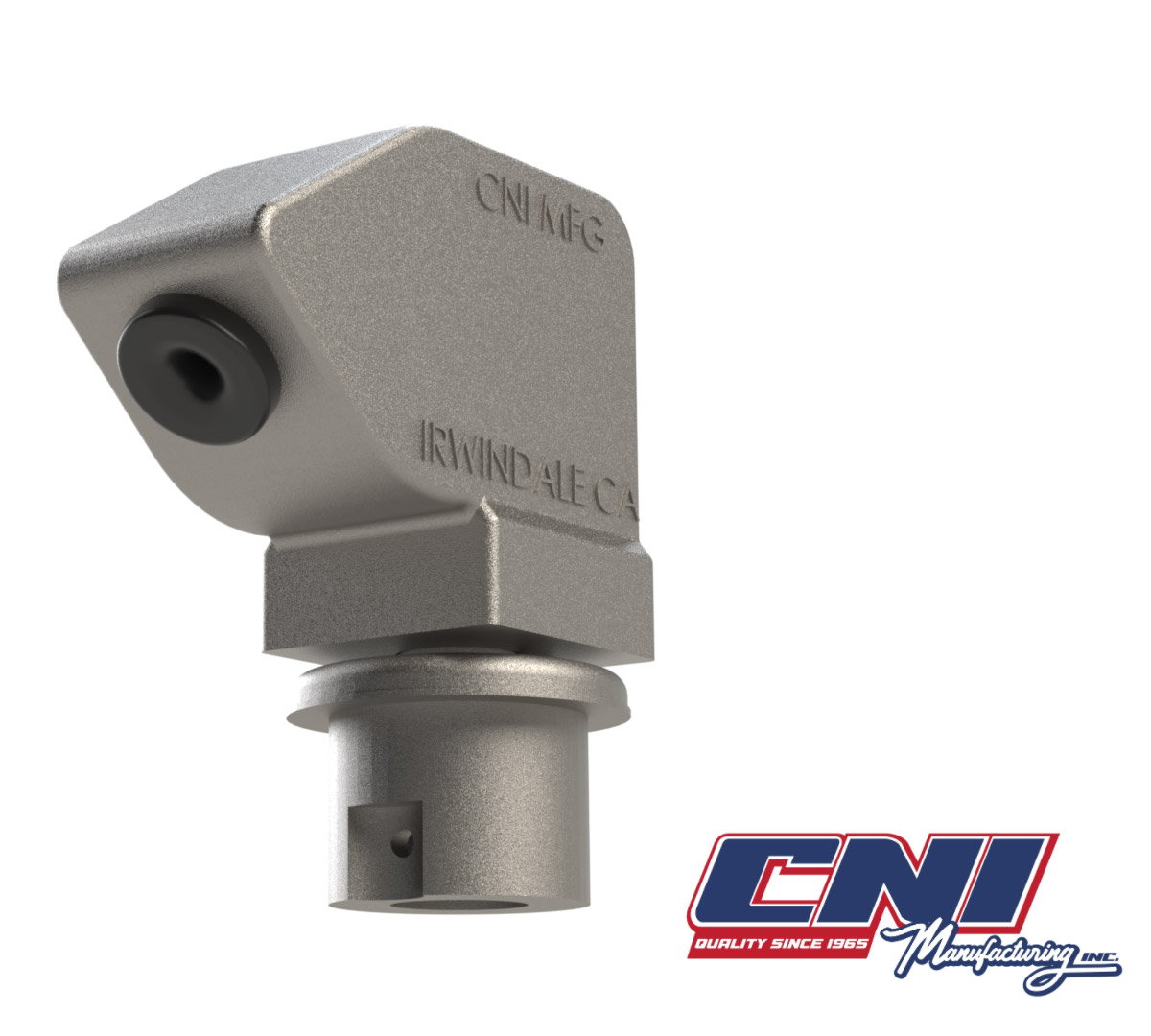

It features a cast aluminum swivel head that rotates 320 degrees and is compatible with 2″ SCH40 steel round pipe, allowing for flexible and precise hose positioning. The swivel head and pulleys are fitted with self-lubricating bronze bushings, ensuring smooth operation and reduced maintenance over time.

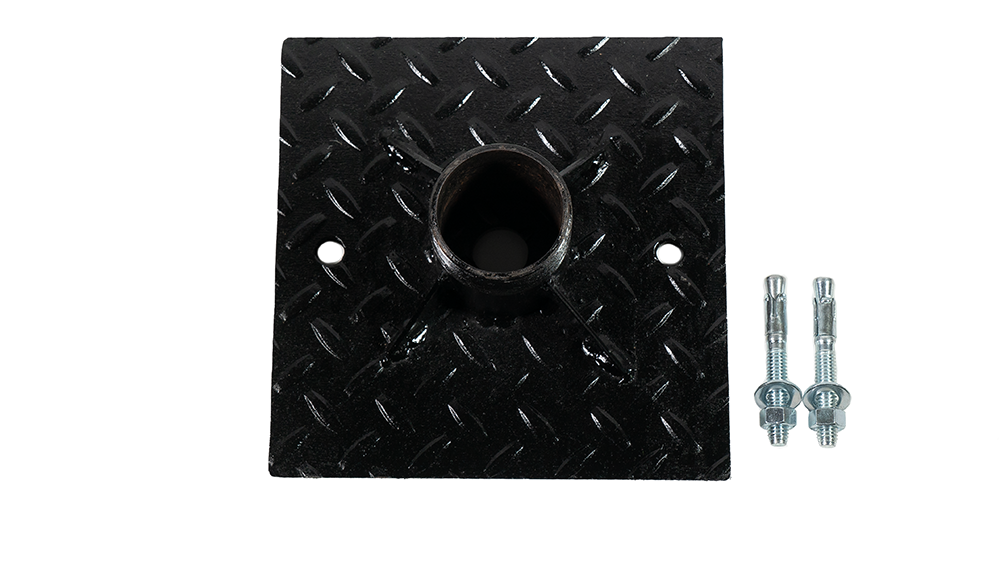

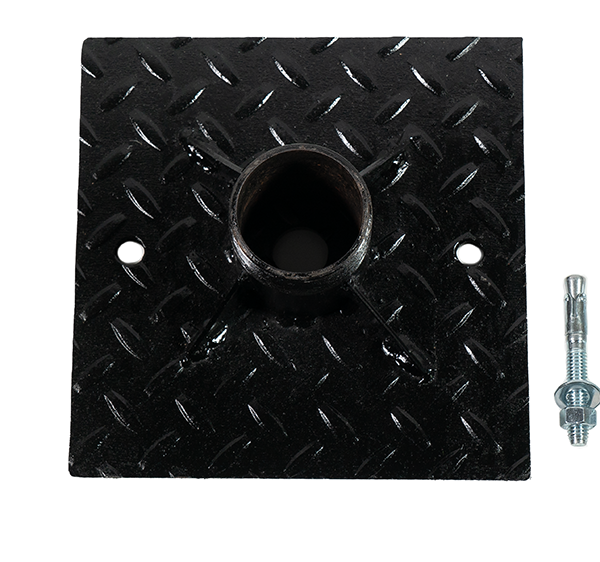

A solid 1-3/4″ round counterweight provides consistent tension for efficient hose retraction. The system includes a ground-secured anchor coupling for stability and comes with a hose clamp for quick installation.
Customization options include:

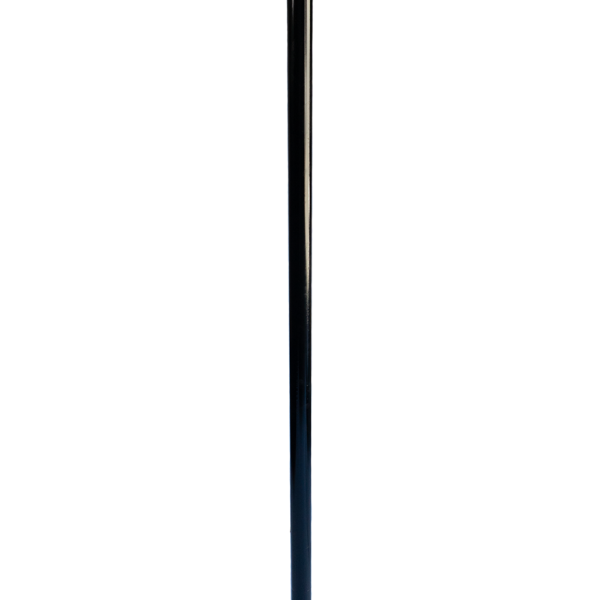

- Post Height Dimensions
- Ordering with or without the post and or base
- Specific weight of counterweight to match the weight of hoses being retracted
- Different hose clamp dimensions to choose from
| Part Number | Description |
|---|---|
| 3/4" Hose - Less Post | |
| 9905-3BA | 3/4″ x 15′-18′ overall length single product hose |
| 9905-4BA | 3/4″ x 19′-21′ overall length single product hose |
| 9905-5BA | 3/4″ x 23′-25′ overall length single product hose |
| 3/4″ Hose – with Post & Commercial Base | |
| 9905-3BA-ASSY | 3/4″ x 15′-18′ overall length single product hose |
| 9905-4BA-ASSY | 3/4″ x 19′-21′ overall length single product hose |
| 9905-5BA-ASSY | 3/4″ x 23′-25′ overall length single product hose |
| 1″ Hose – Less Post | |
| 9906-3BA | 1″ x 15′-18′ overall length single product hose |
| 9906-4BA | 1″ x 19′-21′ overall length single product hose |
| 9906-5BA | 1″ x 23′-25′ overall length single product hose |
| 1″ Hose – with Post & Commercial Base | |
| 9906-3BA-ASSY | 1″ x 15′-18′ overall length single product hose |
| 9906-4BA-ASSY | 1″ x 19′-21′ overall length single product hose |
| 9906-5BA-ASSY | 1″ x 23′-25′ overall length single product hose |
| 1-1/4″ Hose – Less Post | |
| 9907-3BA | 1-1/4″ x 15′-18′ overall length single product hose |
| 9907-4BA | 1-1/4″ x 19′-21′ overall length single product hose |
| 9907-5BA | 1-1/4″ x 23′-25′ overall length single product hose |
| 1-1/4″ Hose – with Post & Commercial Base | |
| 9907-3BA-ASSY | 1-1/4″ x 15′-18′ overall length single product hose |
| 9907-4BA-ASSY | 1-1/4″ x 19′-21′ overall length single product hose |
| 9907-5BA-ASSY | 1-1/4″ x 23′-25′ overall length single product hose |
| 1-1/2″ Hose – Less Post | |
| 9907-7BA | 1-1/2″ x 15′-18′ overall length single product hose |
| 9907-8BA | 1-1/2″ x 19′-21′ overall length single product hose |
| 9907-9BA | 1-1/2″ x 23′-25′ overall length single product hose |
| 1-1/2″ Hose – with Post & Commercial Base | |
| 9907-7BA-ASSY | 1-1/2″ x 15′-18′ overall length single product hose |
| 9907-8BA-ASSY | 1-1/2″ x 19′-21′ overall length single product hose |
| 9907-9BA-ASSY | 1-1/2″ x 23′-25′ overall length single product hose |
