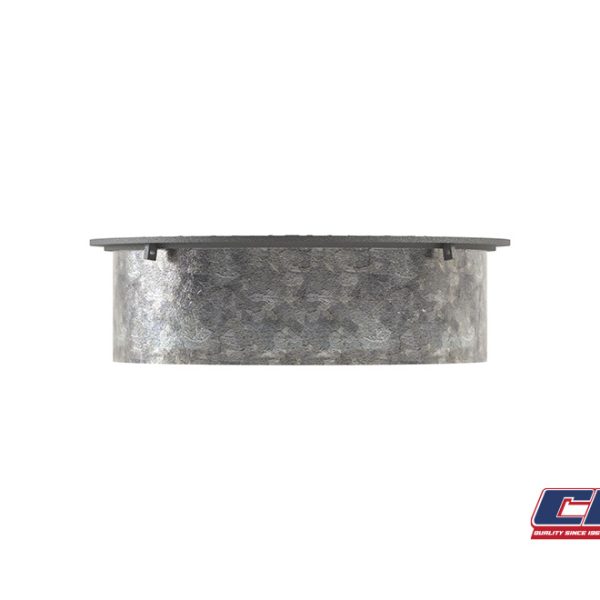

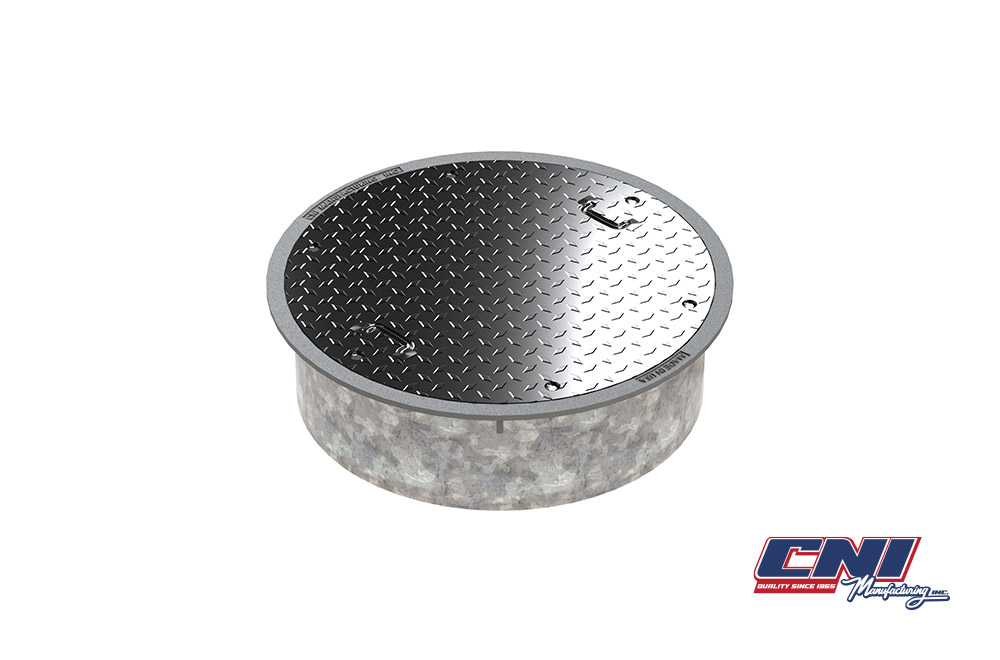

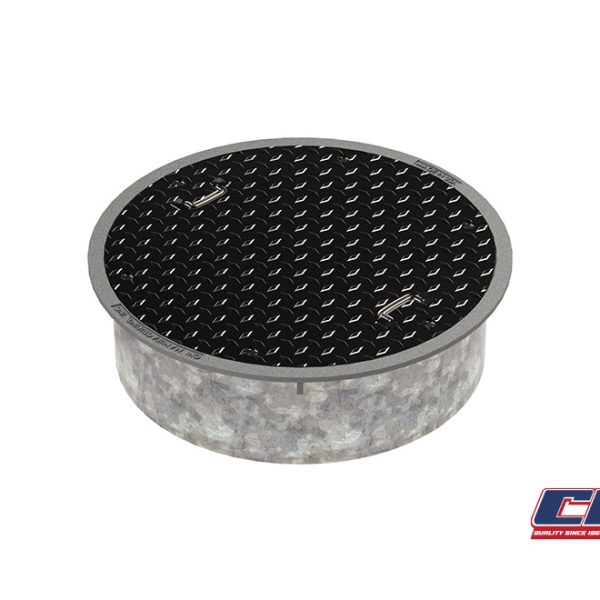

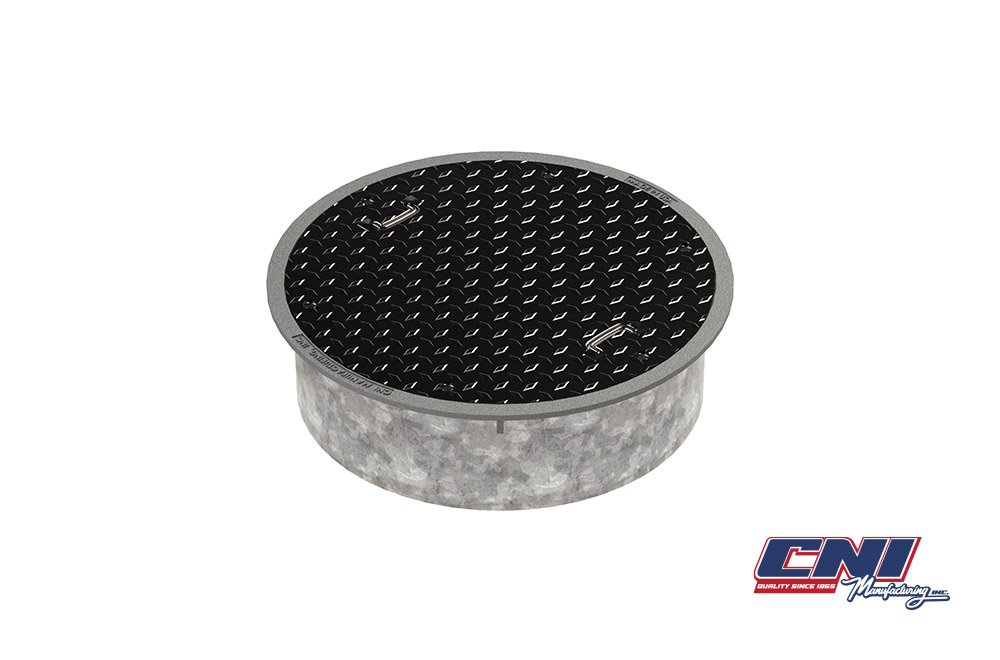

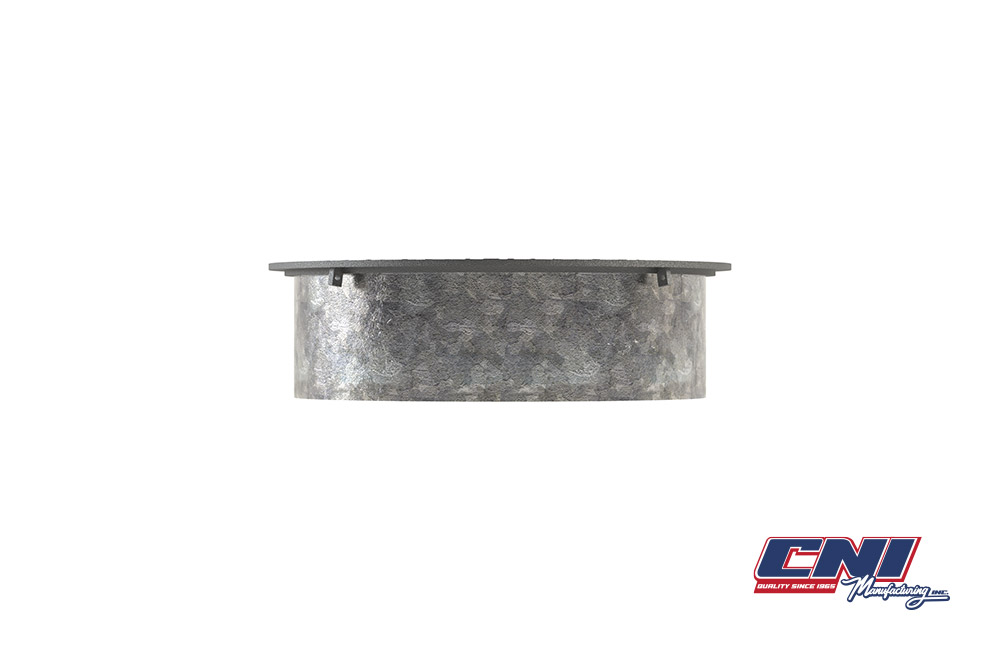

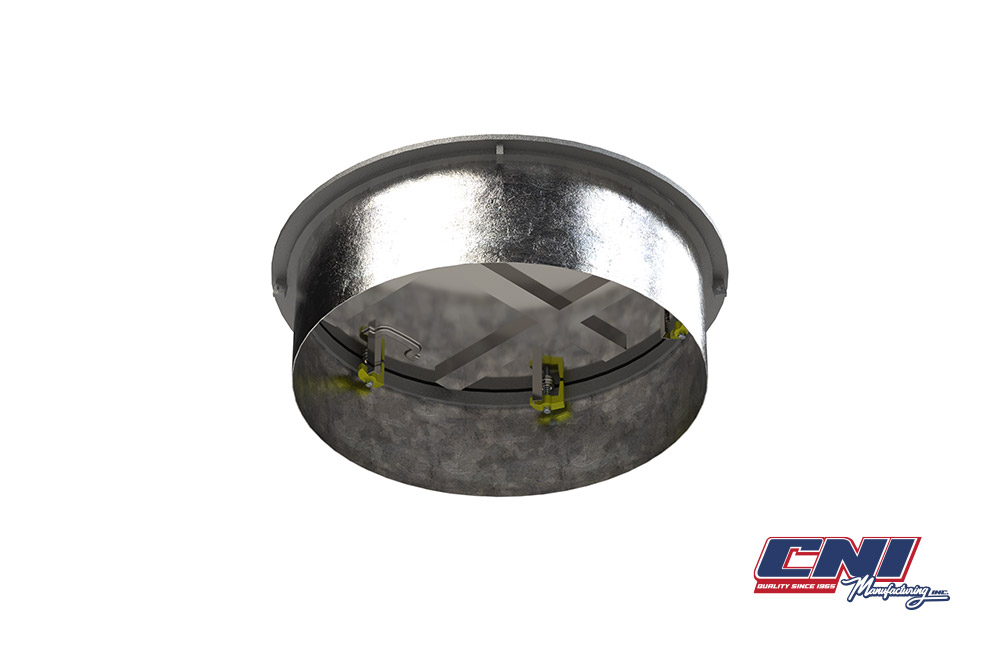

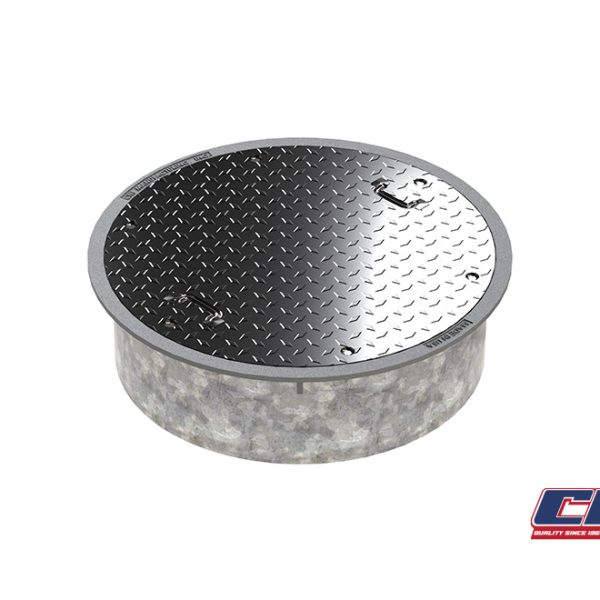

Ductile Iron Ring Manhole with Cam-Loks
Ductile Iron Ring Manhole with Cam-Loks
Specifications:
Outer Ring: Heavy cast ductile iron.
Cover: 3/8″ Non-skid, reinforced floor plate, complies with H20 rating.
Skirt: 14 Gauge galvanized sheep metal.

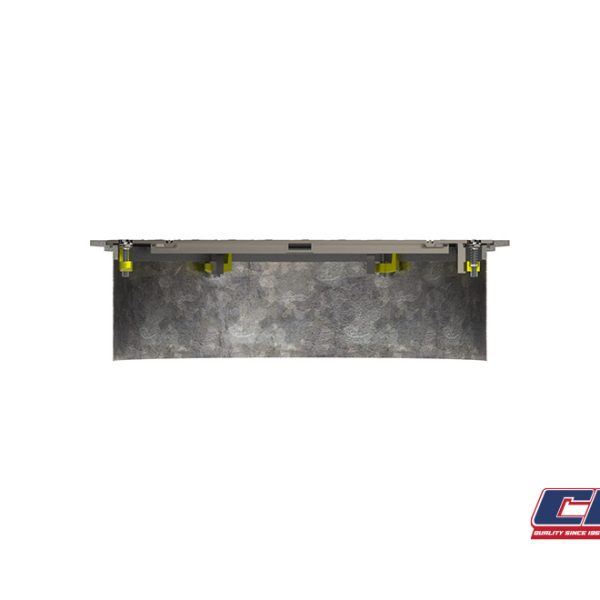

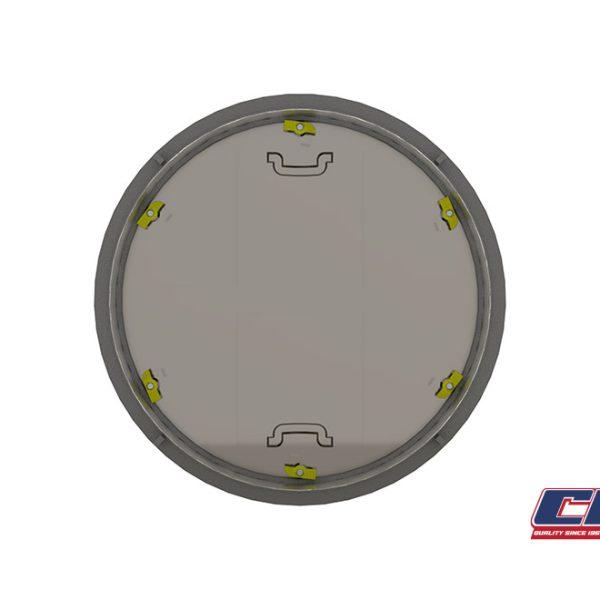

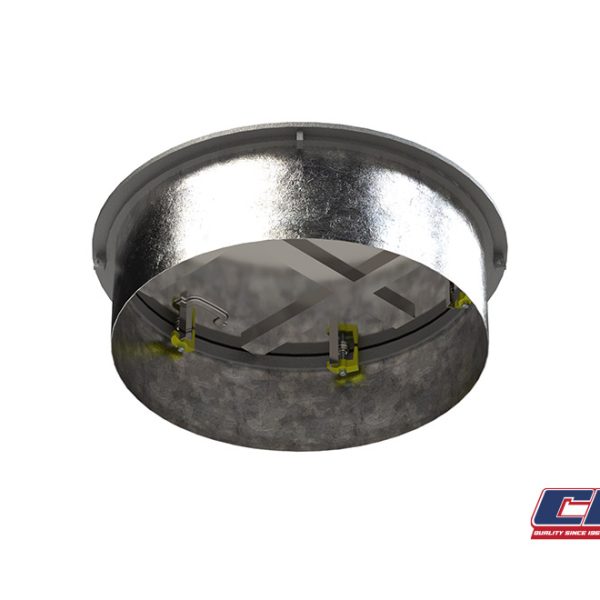

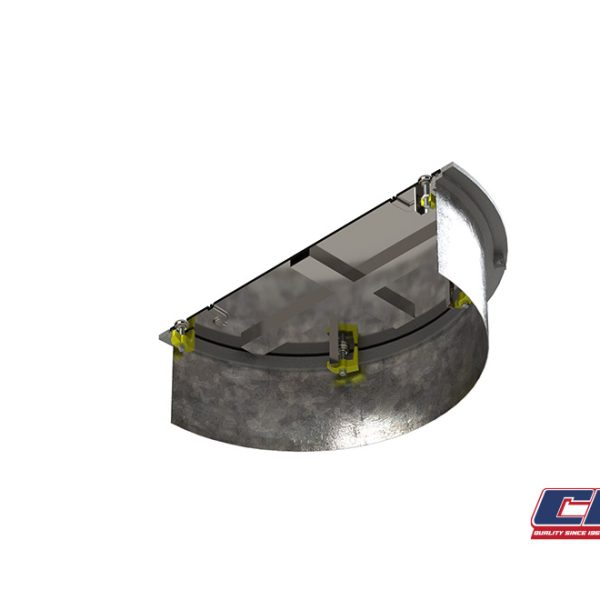

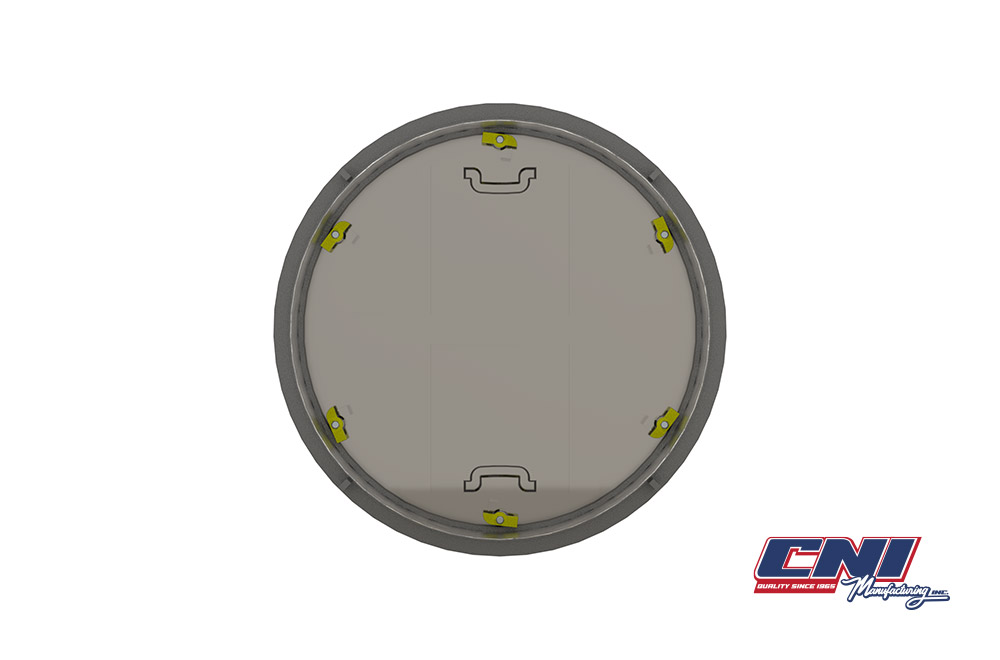

Cam-Loks: Manhole sizes 24″ and larger come standard with cam-loks all others are screw and gasket
Features:
Lift handles on all covers 24″ and larger.
All manholes requiring screw down cover are equipped with 1/2″ S.S Bolts.
Tamper proof allen screws are available as an option.
Brass name tags are available upon request.
All Manholes are manufactured water tight and H20 traffic weight rated unless otherwise specified
| Part NO. with screw and gasket | Part NO. without screw and gasket | Size- With Cam-Loks |
|---|---|---|
| 7002 | 7000 | 8" Dia x 8" Skirt (Screw And Gasket) |
| 7008 | 7006 | 12" Dia x 8" Skirt |
| 7011 | 7009 | 12" Dia x 12" Skirt |
| 7017 | 7015 | 16" Dia x 8" Skirt |
| 7020 | 7018 | 16" Dia x 12" Skirt |
| 7026 | 7024 | 18" Dia x 8" Skirt |
| 7029 | 7027 | 18" Dia x 12" Skirt |
| 7034 | 7033 | 24" Dia x 12" Skirt |
| 7039 | 7038 | 30" Dia x 12" Skirt |
| 7044 | 7043 | 36" Dia x 12" Skirt |
| 7049 | 7048 | 42" Dia x 12" Skirt |
| 7054 | 7053 | 48" Dia x 12" Skirt |
Related Products

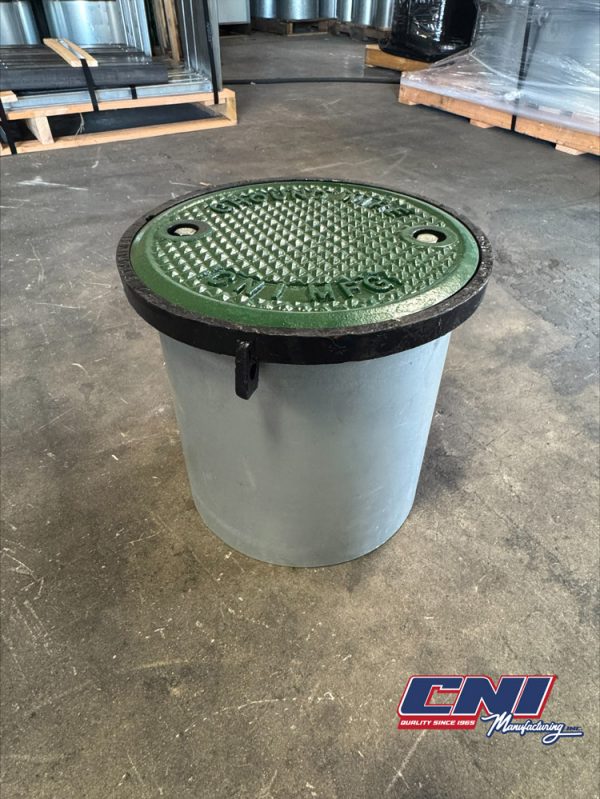

Ground Wire Box
