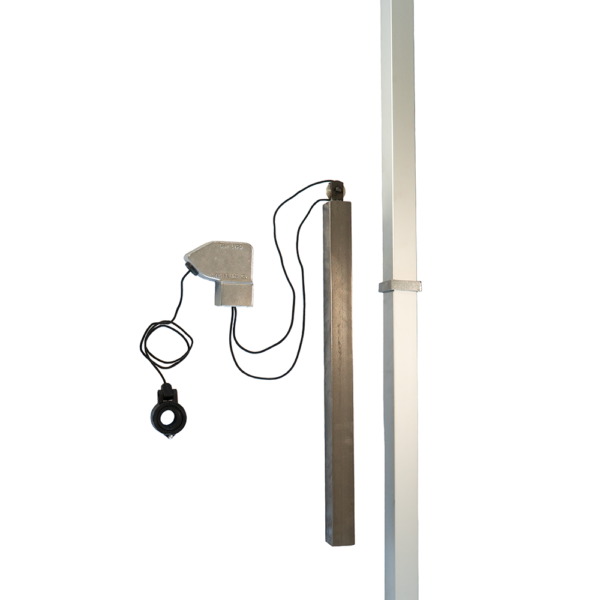

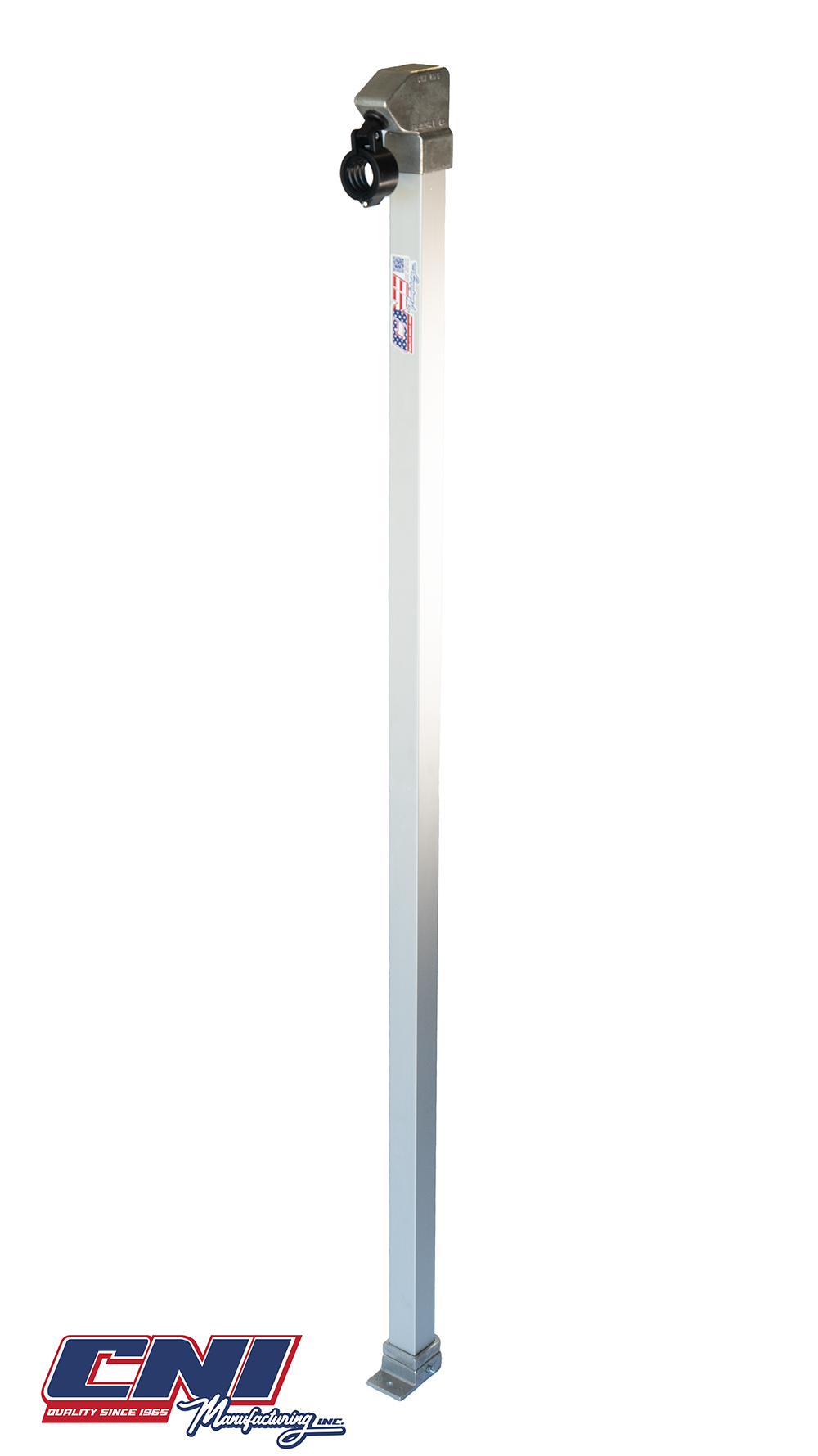

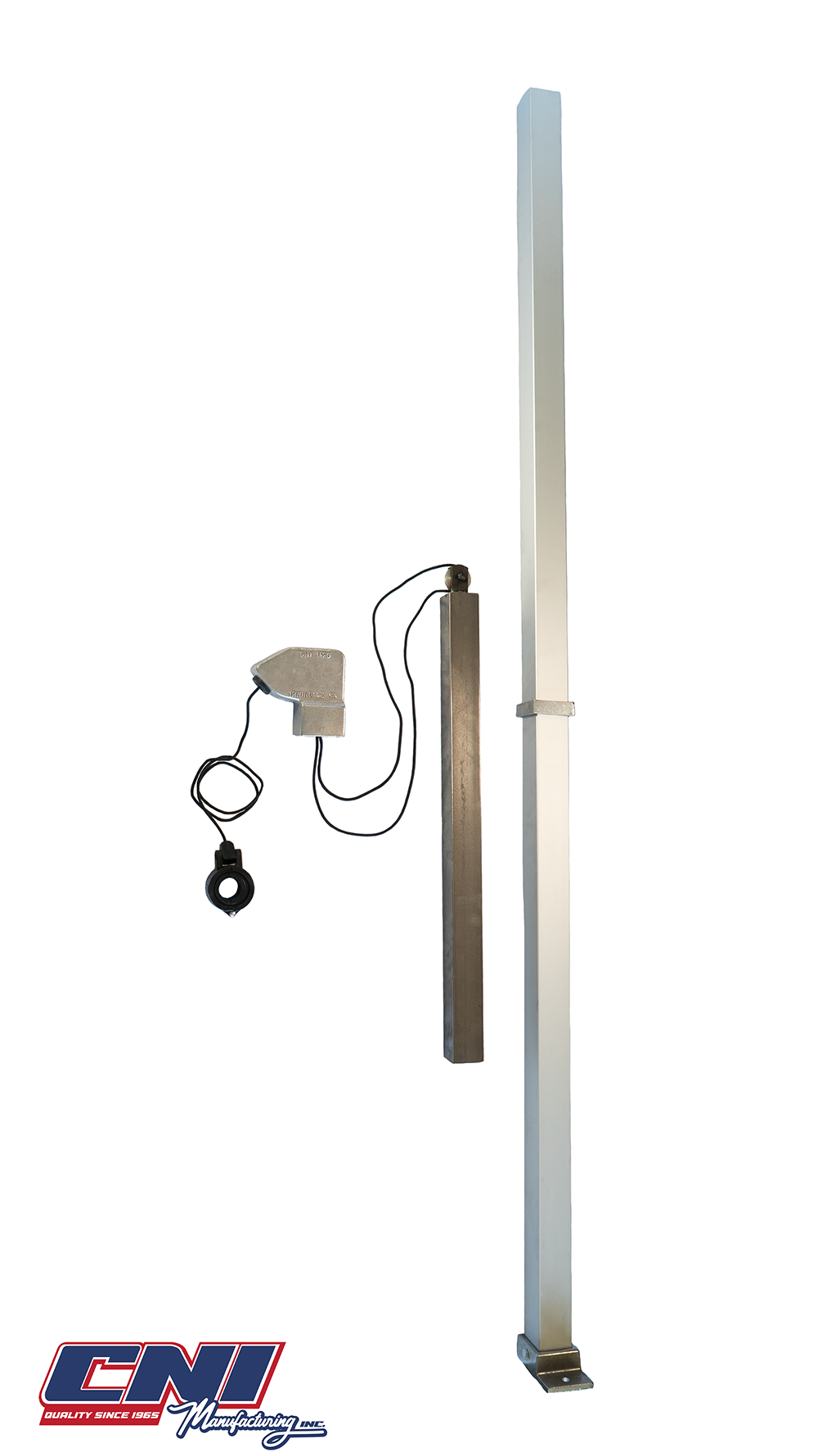

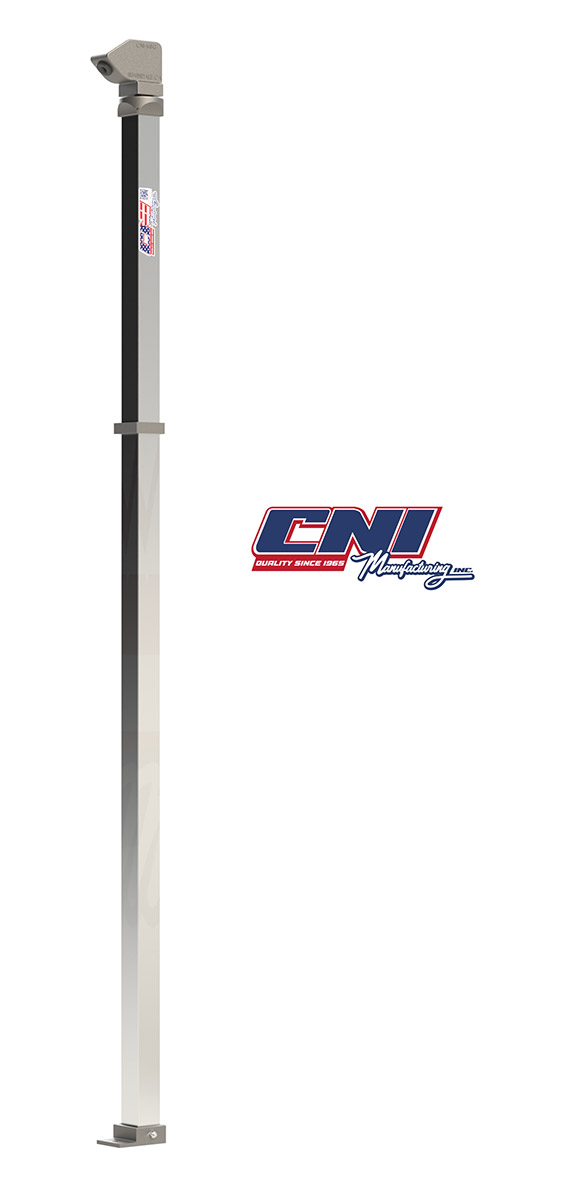

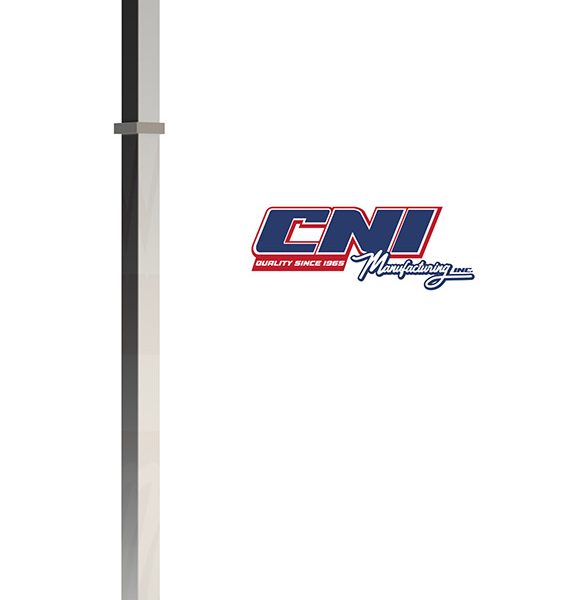

Fixed Head Counter Weight Hose Retractor

Our Fixed Head Counter Weight Hose Retractor is a durable and field-proven solution designed to keep fueling hoses safely off the ground, reducing wear and improving safety. Built from high-quality materials and fully assembled for convenience, this retractor is ideal for a variety of fueling applications.

Standard Features:

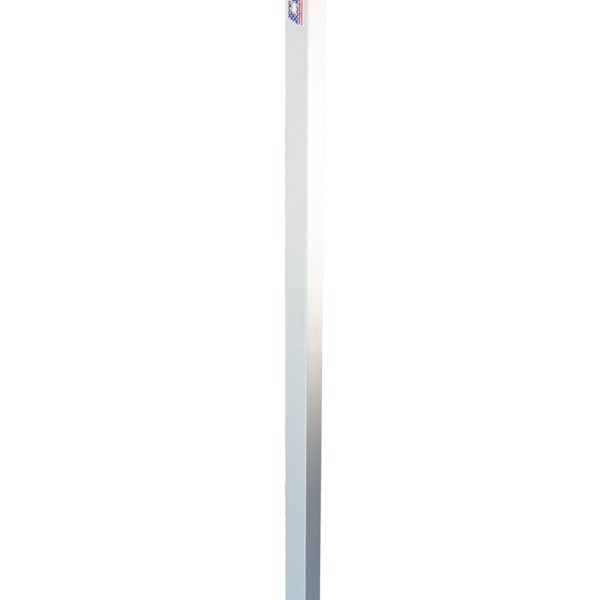

• 2″ x 2″ square, 6′ long extruded aluminum post with a hard coat clear anodized finish for superior corrosion resistance.

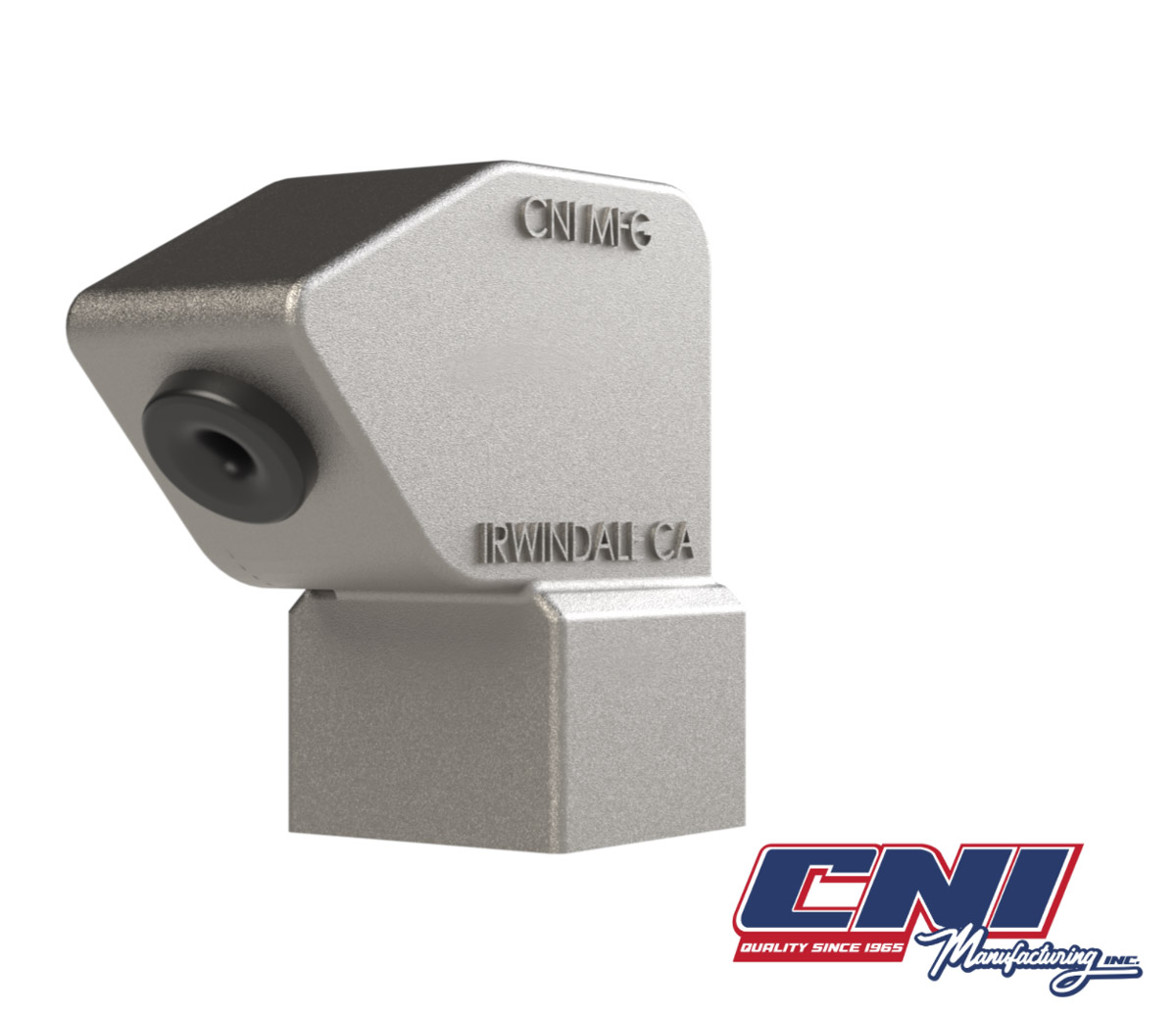

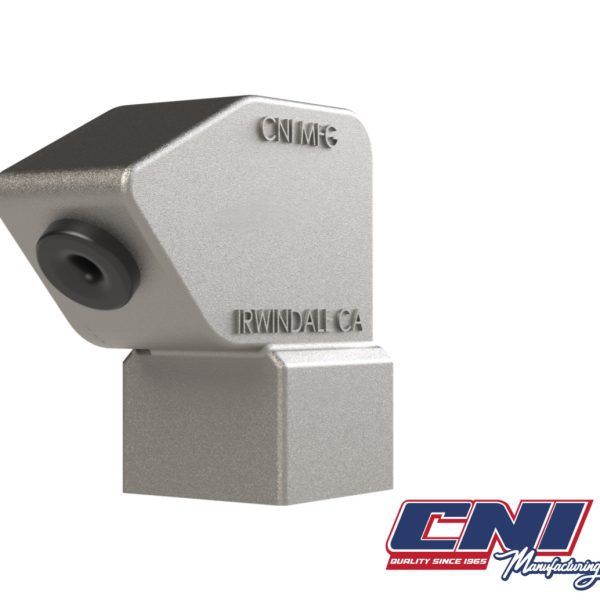

• Fixed head assembly made from cast aluminum with a burnished clear finish and a 2″ labeling area.

• 1-3/4″ solid square bar counterweight for balanced, smooth retraction.

• Flush mount and foot brackets for secure installation.

• 3/16″ nylon accessory cord runs through a deep-groove pulley system with replaceable eyelet to prevent slippage and ensure reliable operation.

• Cord extends at a 45° angle to minimize friction, improving longevity.

• Steel counterweight pulleys feature self-lubricating bronze bushings for smooth performance.

• Hose clamp assembly included for quick setup.

Additional Options:

• Custom post lengths available — call for details.
• Custom hose length configurations — call to order.

Warranty: 18-month manufacturer’s warranty included.
