Swivel Head Counter Weight Retractor

The Swivel Head Hose Retriever Kit is engineered for flexibility, durability, and performance in demanding fueling environments. Each kit comes fully assembled and includes everything needed for installation and operation.

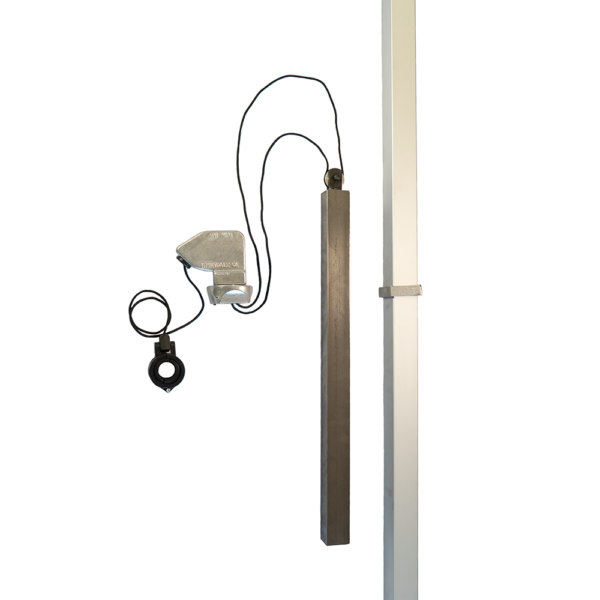

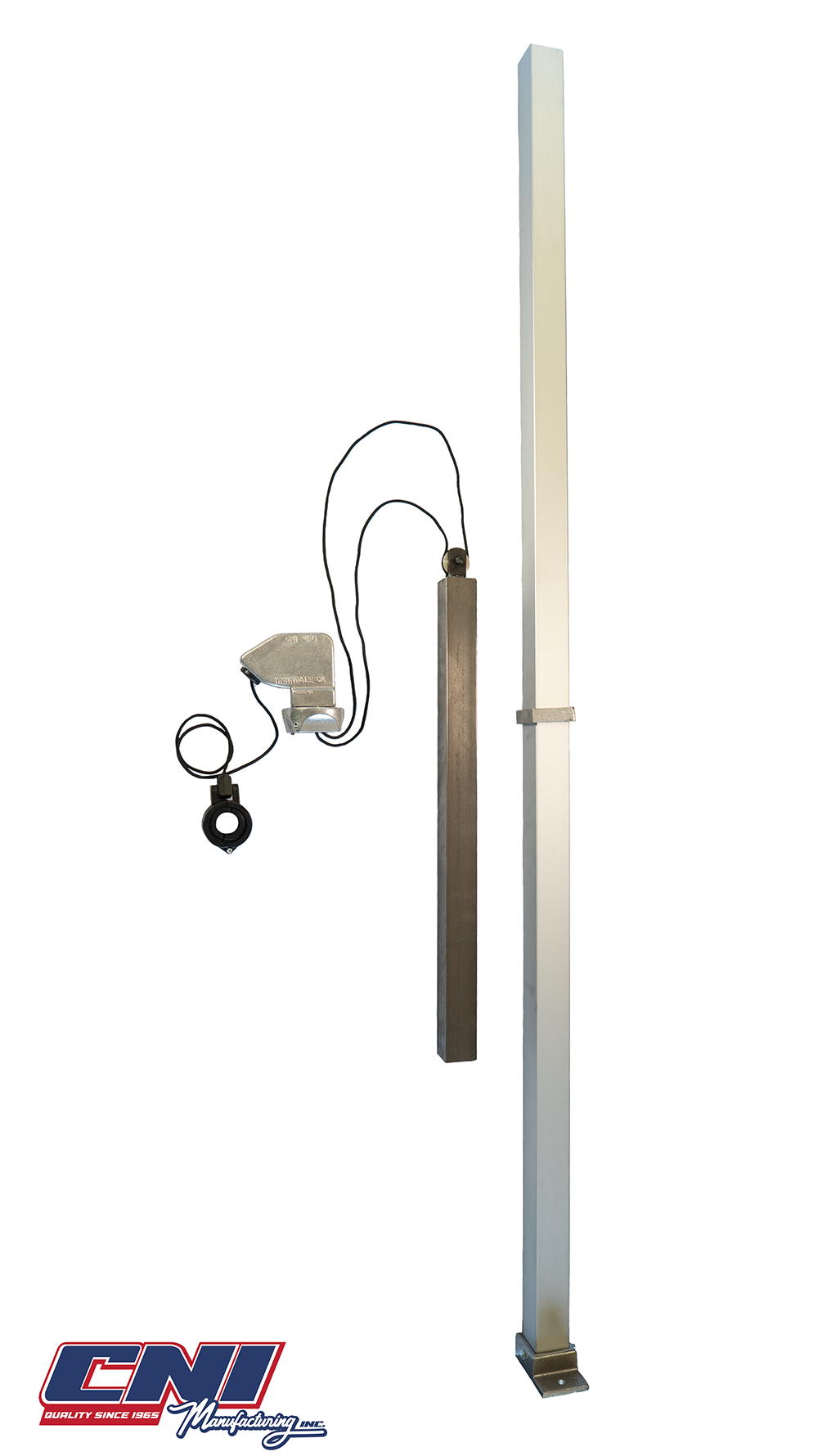

Swivel Head Hose Retriever assembly includes:

• Cable
• Aluminum 2″ x 2″ Post
• Square Counterweight
• Flush Mount Bracket
• Hose Clamp Assembly

Standard Features:

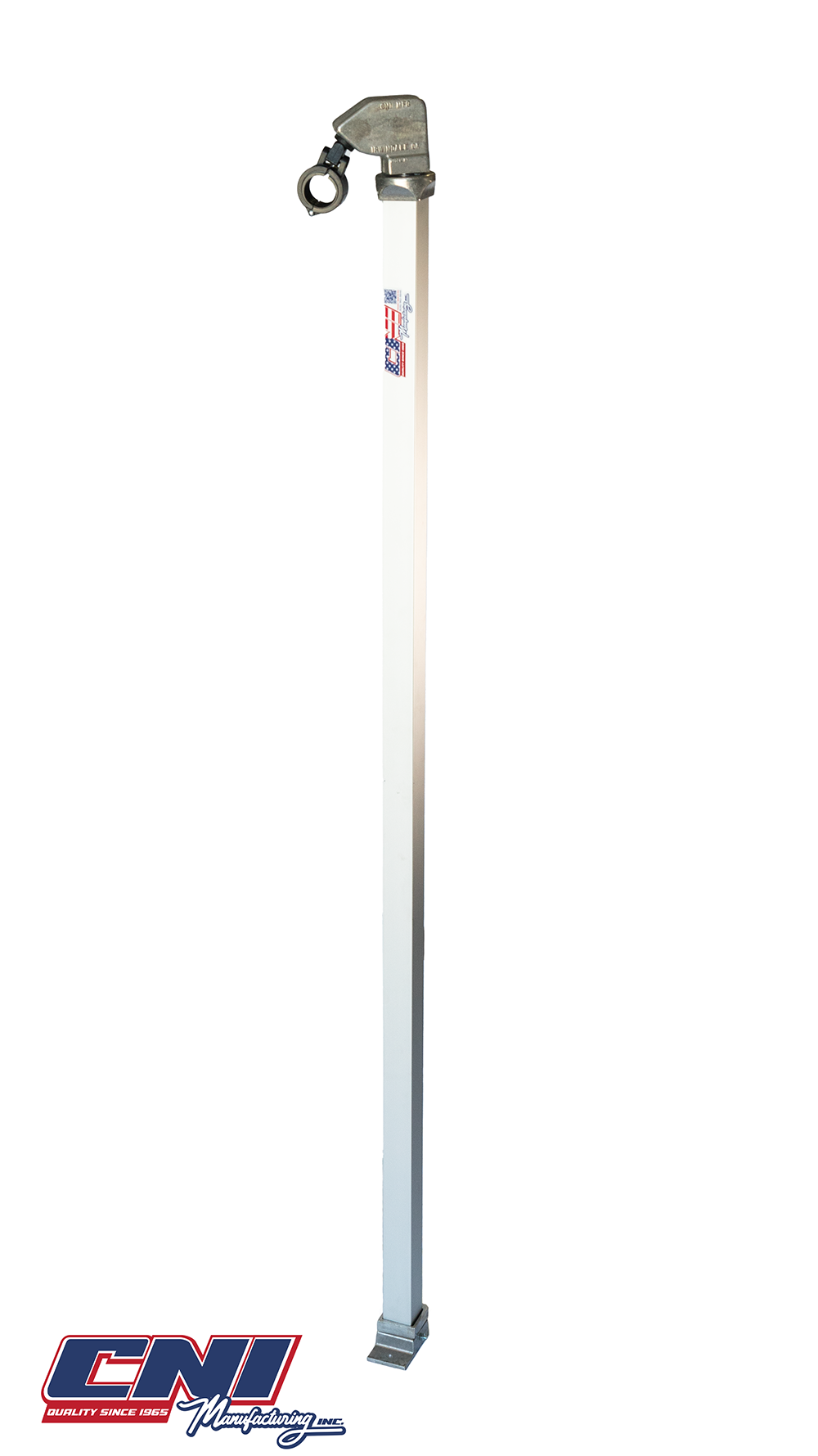

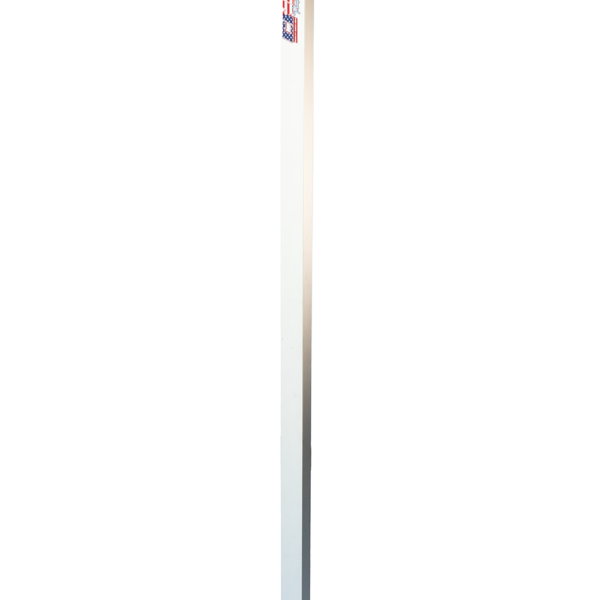

• 2″ square, 6′ long extruded aluminum tube with a hard coat clear anodized finish for superior corrosion resistance.

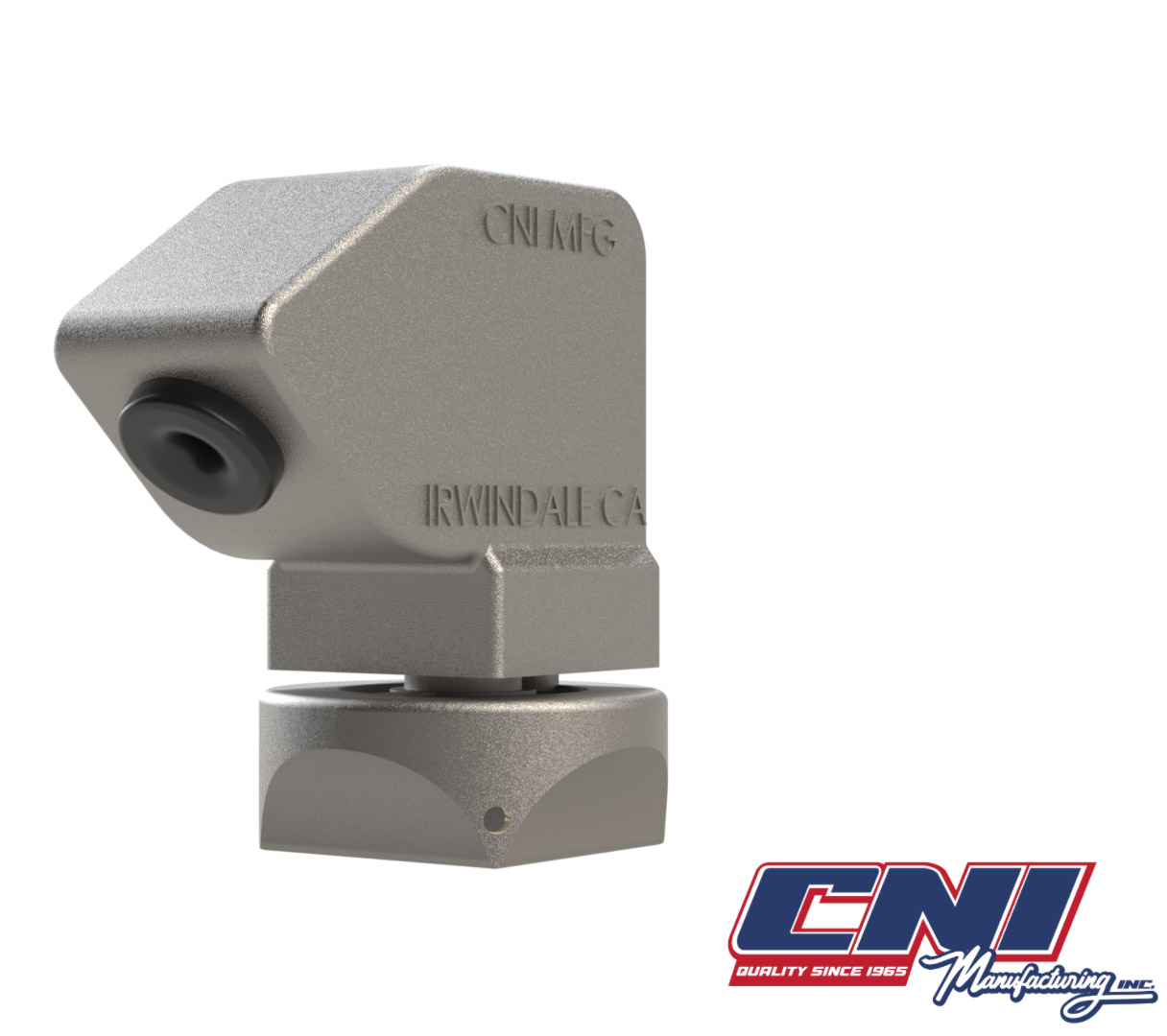

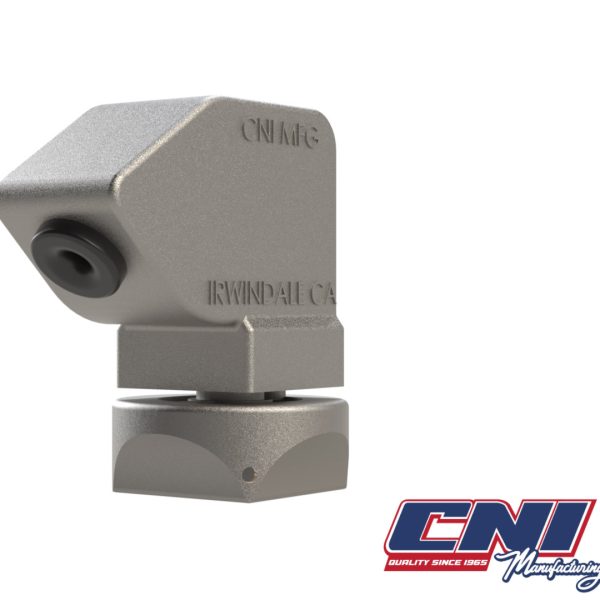

• Cast aluminum swivel head with a clear burnished finish and a 2″ flat area for numbering or labeling.
• Swivel head rotates 320° to follow the operator, minimizing strain on the hose.
• 1-3/4″ solid square bar counterweight for smooth retraction.
• 3/16″ nylon accessory cord runs through a replaceable eyelet and deep-groove pulleys to prevent derailment.
• Cord extends and retracts at a 45° angle to reduce friction and wear.
• Steel counterweight pulleys with self-lubricating bronze bushings.
• Hose clamp included for easy installation.

Customization Options:

• Custom post lengths available – call to order.
• Custom hose length configurations – call to order.

Warranty: 18-month manufacturer’s warranty.
